Basic Usage

BaderKit can be used in three main ways.

Through python scripts
Through the command line
Through an interactive app in your browser

Python allows for more extensive logic to be used with the results, the command line is quick and convenient, and the web app allows for easy visualization.

Python¶

The Bader Class¶

The original goal of this project was to make the results of Bader analysis more readily available for further analysis in more complex workflows. The core functionality is found in the Bader class, which can be readily created by providing the path to a VASP CHGCAR/ELFCAR or a .cube file.

from baderkit.core import Bader
from pathlib import Path

# instantiate the class
bader = Bader.from_dynamic(
    charge_filename = "path/to/charge_file",
    reference_filename = "path/to/charge_file", # Optional
    method = "weight", # Optional. Also ongrid, neargrid, hybrid-neargrid, or hybrid-weight
    directory = Path("path/to/somewhere") # Optional
    )

Results are stored as class properties. To run the algorithm and get results, simply call one of these properties. For example, we can get a complete summary:

results = bader.results_summary

Or individual properties:

atom_charges = bader.atom_charges # Total atom charges
atom_labels = bader.atom_labels # Atom assignments for each point in the grid
basin_volumes = bader.basin_volumes # The volumes of each bader basin
maxima_coords = bader.basin_maxima_frac # Frac coordinates of each attractor

Results can also be written to file. If no directory is provided, they will be written to the default directory defined with the class was first instanced.

bader.write_results_summary() # writes results to .tsv files
bader.write_basin_volumes([0]) # writes each basin in a list
bader.write_atom_volumes_sum([0,1,2]) # writes the union of atomic basins

The Grid Class¶

The Bader class only has convenience functions for loading VASP or .cube files. For other formats, it must be created from BaderKit's Grid class. Behind the scenes, the Grid class inherits from Pymatgen's VolumetricData class. The Grid class can be created directly from a Pymatgen Structure object and a dictionary of Array's representing the Charge Density.

from baderkit.core import Bader, Grid, Structure
from pathlib import Path
import numpy as np

# load a Structure object
structure = Structure.from_file(filename = "mystructure.cif", fmt = "cif")

# Load your data, however you can, into a numpy array
charge_data = np.array([
[[1,2,3],[3,4,5],[6,7,8]],
[[1,2,3],[3,4,5],[6,7,8]],
[[1,2,3],[3,4,5],[6,7,8]],
])

# Create a data dictionary
data = {"total": charge_data}

# create Grid objects for the charge-density and reference file
charge_grid = Grid(structure=structure, data=data)

# Create the Bader object
bader = Bader(charge_grid = charge_grid)

Note

For spin-polarized calculations, the data dictionary should have two entries, total and diff containing the (spin-up + spin-down) data and (spin-up - spin-down) data respectively. Only the data in the total entry is used for bader analysis.

For VASP Users (And other pseudopotential codes)¶

VASP's CHGCAR contains only the valence electrons designated in the pseudopotential (PP) used for the calculation. It is generally recommended to recombine the valence charge density with the core density to use as the reference file. To do this, add the tag LAECHG=.TRUE. to your INCAR file before it runs.

This will write the core charge density to an AEECAR0 file and the valence to AECCAR2 which can be summed together using the Grid class and then used as the reference file for the analysis.

from baderkit.core import Bader, Grid

# load the standard charge density
charge_grid = Grid.from_vasp("CHGCAR")

# load the AECCAR0 and AECCAR2
aeccar0_grid = Grid.from_vasp("AECCAR0")
aeccar2_grid = Grid.from_vasp("AECCAR2")

# sum the grids
reference_grid = Grid.sum_grids(
    grid1 = aeccar0_grid,
    grid2 = aeccar2_grid
    )

# create the bader object
bader = Bader(
    charge_grid = charge_grid,
    reference_grid = reference_grid
    )

Command Line¶

In addition to the Python interface, BaderKit can be run from the command line. In most cases the commands mimic those from the Henkelman group's code. For basic use:

Activate your environment with BaderKit installed
Navigate to the directory with your charge density and reference file
Run
```
baderkit run CHGCAR -ref CHGCAR_sum
```

Output files for atoms and bader basins will be written automatically to bader_atom_summary.tsv and bader_basin_summary.tsv respectively. Additional arguments and options such as those for printing output files or using different algorithms can be viewed by running

baderkit run --help

There is also a convenience command for combining two grid files into a CHGCAR_sum file.

baderkit tools sum AECCAR0 AECCAR2

Web GUI¶

Note

Pyvista dependencies must be installed to use this feature by running pip install baderkit[webapp]

Repeatedly writing basins to file to visualize them can be annoying. To help with this, we have the BaderPlotter class which uses pyvista under the hood. This can be interacted with in python directly, or through a Streamlit webapp which can be started from the command line.

baderkit tools webapp CHGCAR -ref CHGCAR_sum

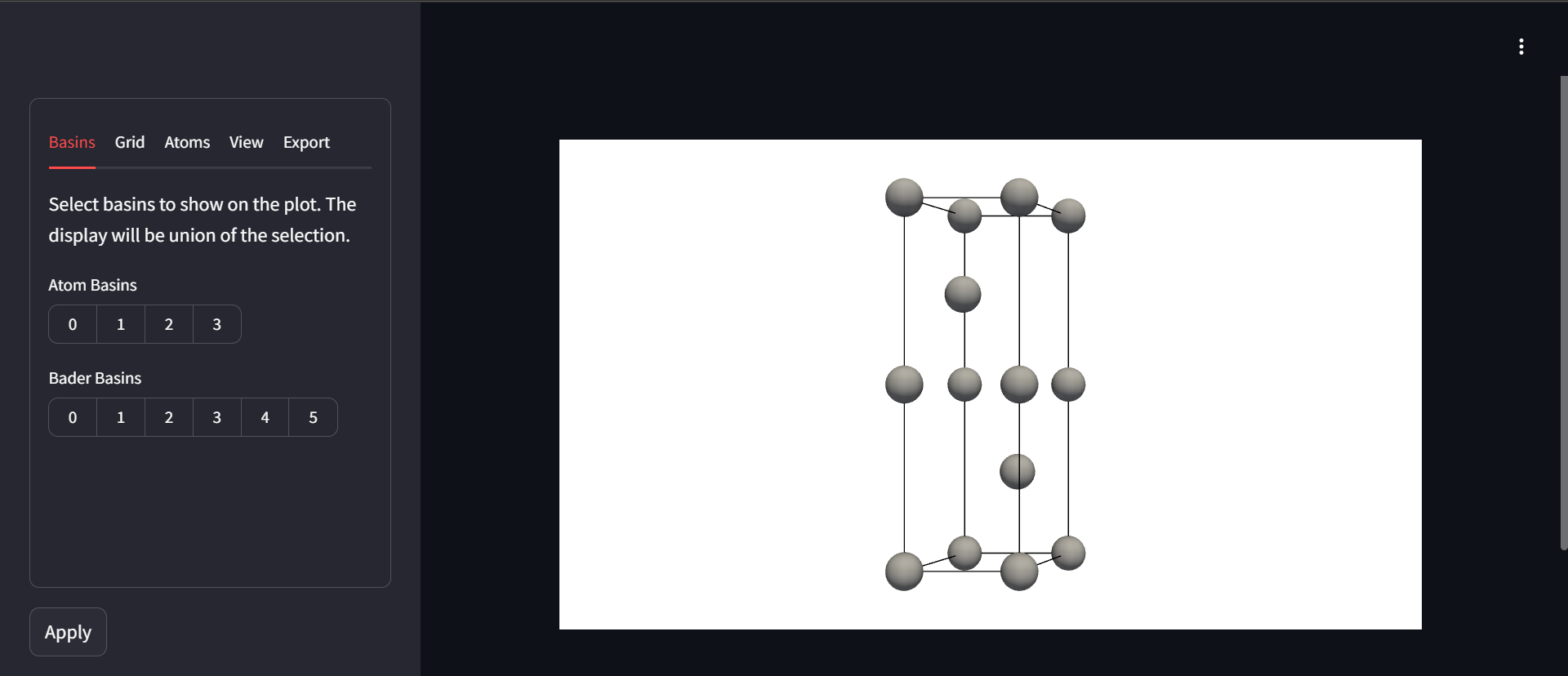

This will open a window in your browser similar to this: streamlit_app

The atom and bader basins can be selected using the Bader tab on the left. Some basic visualization settings can be found under the Grid, Atoms, and view tabs .

The selected basins can be exported to vasp-like from the Export tab. The viewport can also be exported to a variety of image formats.

Warning

Currently the viewport is made by exporting the pyvista Plotter object to html. Changes made by interacting with the view port directly (e.g. rotation, zoom) will not show up in exported images, and the image may flash when the apply button is clicked.
